Tongxin Manufacturer Supply Drum Separator Design Size Grading Of Stone
Introduction

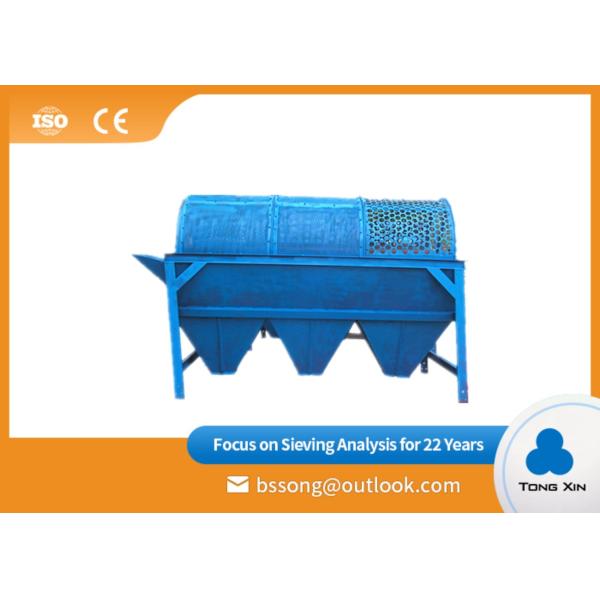

Electric garbage drum screen trommel screen is mainly composed of several circular screen clothes, and is in a tilt state with ground on the whole, the screening drum rotates under certain rotation speed through deceleration system.
The materials are screened from top to down through screening drum, fine materials are discharged from bottom of screening drum front, and coarse materials are discharged from tail of screening drum bottom.
Specifications
Features
1. Heavy Duty Vibrating Screen Compost Drum Sieve is suitable to separate various materials included poor quality of coal, coal slime, or soot.
2. It do not require special facility and suitable for various material feeding methods.
3. It has higher efficiency by the installation of comb shape screen structure.
4. Cylindrical shape of screen provided larger surface area which has higher possibility of materials to contact with the screen mesh; therefore, it has higher capacity and more effective.
Apply in Industry
| Quarry | Suitable for screening and classifying gravel, clay, mountain meal, sand, etc. |
| Coal Industry | Suitable for screening and classifying lump coal, coal dust, coal washing, etc. |
| Abrasive material and ceramic industry | Building sand, mica, alumina, silica sand, abrasive, refractory material etc. |
| Metallurgy and mining industry | Quartz sand, sand, ore, titanium oxide, zinc oxide, etc. |
| Mechanical industry | Casting sand, charcoal, graffito, powder metallurgy, electromagnetic material and metal powder, etc. |
Working Principle
The raw materials through the entrance of the Inlet will be pushed into the rotary drum/ cylinder sieve raw materials in the rotary drum cylinder will be selected by the rotation of rotary drum sieve, with the rotating of the cylinder the materials that less than the screen mesh will flow down by gravity, the oversize materials will flow through the cylinder and discharge from outlet at the machine end.
Technical Parameters
| Model | Capacity(m³/h) | Drum Diameter(mm) | Drum length(mm) | Screen size | Deck | Power(kw) |
| GS-600 | 1-5 | 600 | 1500-3000 or customized | According to customer requirement | 1-5 | 3 |
| GS-800 | 1-10 | 800 | 3 |
| GS-1000 | 20-30 | 1000 | 3 |
| GS-1200 | 20-50 | 1200 | 3 |
| GS-1500 | 40-80 | 1500 | 5.5 |
| GS-1800 | 80-150 | 1800 | 7.5 |
| GS-2000 | 130-200 | 2000 | 11 |
Our Advantage
The product of Tongxin company can be sent to the Quality and Technical Supervision Bureau for mesh detection, if not in line with the national standards for you free return and replacement. The follow picture is our long term cooperator.
Our Service
1. Professional engineers team can choose the right equipment for you;
2. We can provide thorough after-sales service to ensure the proper use of machine.
3. We can provide OEM customization.
4. We Provide video installation instructions;
5. We offer 24-hour online consulting service.
If you want to get more information of product, please contact us!
